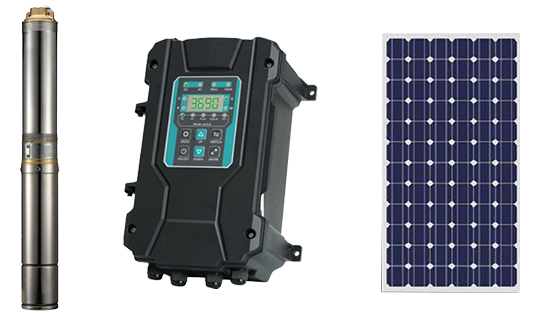

Product parameters

• Basic information: Permanent magnet synchronous motors, Copper wire motor, centralized winding, Stainless steel impeller&impeller&bearing

• Power: 2.6KW

• Voltage (V): AC220/DC310

• Water outlet: 2"

Enter parameters

• DC input voltage: 60-430V DC

• AC input voltage: 80-280V/45-65Hz

• MPPT voltage range: 60-365V

• DC input voltage (Hybrid mode): 60-320V

• Maximum current: 15A

• Peak current: 21A

Output parameters

• Output power: 2.2-2.6KW

• Rated output voltage: 90-220V

• Maximum current: 12A

• Peak current: 10A

• Speed: 500-4000RPM

Product parameters

• Standard configuration: 345W

• Voltage under maximum power (Vm): 33.1V

• Current at maximum power (Lm): 10.42A

• Open circuit voltage (Voc): 40.6V

• Short-circuit current (Lsc): 10.76A

• Efficiency (%): 20.2
